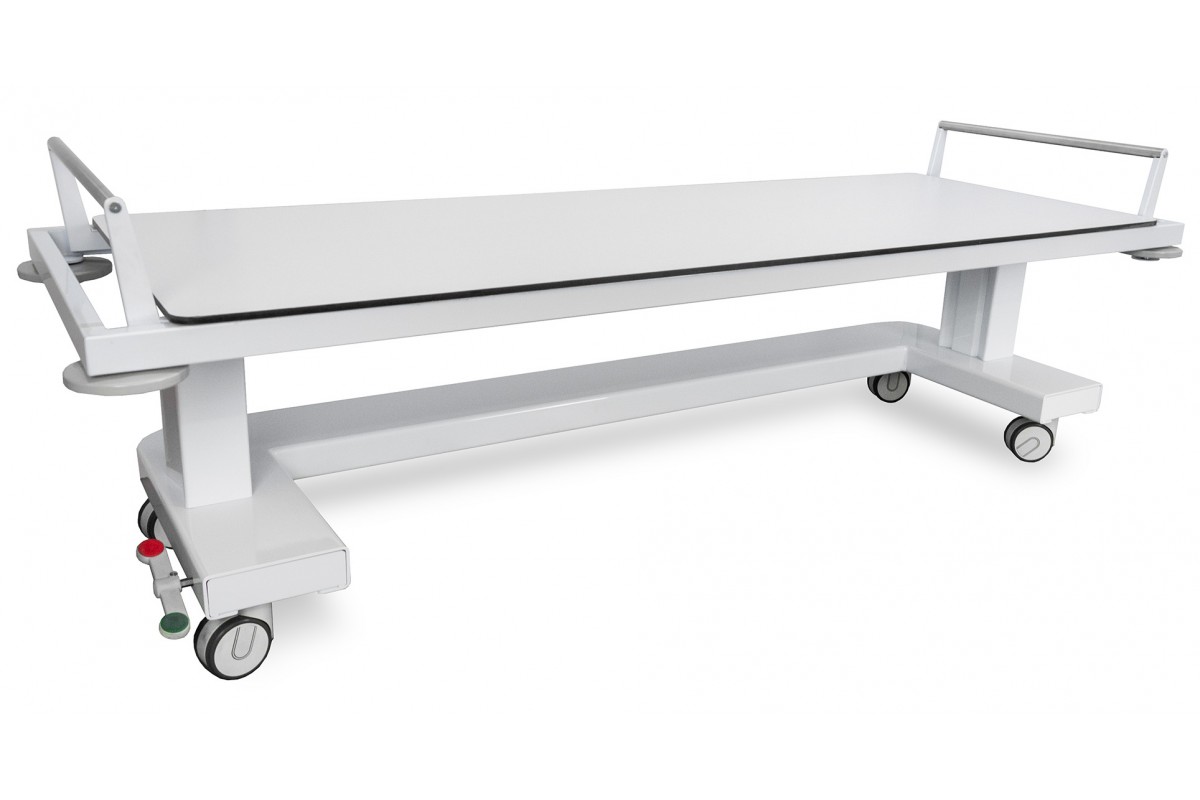

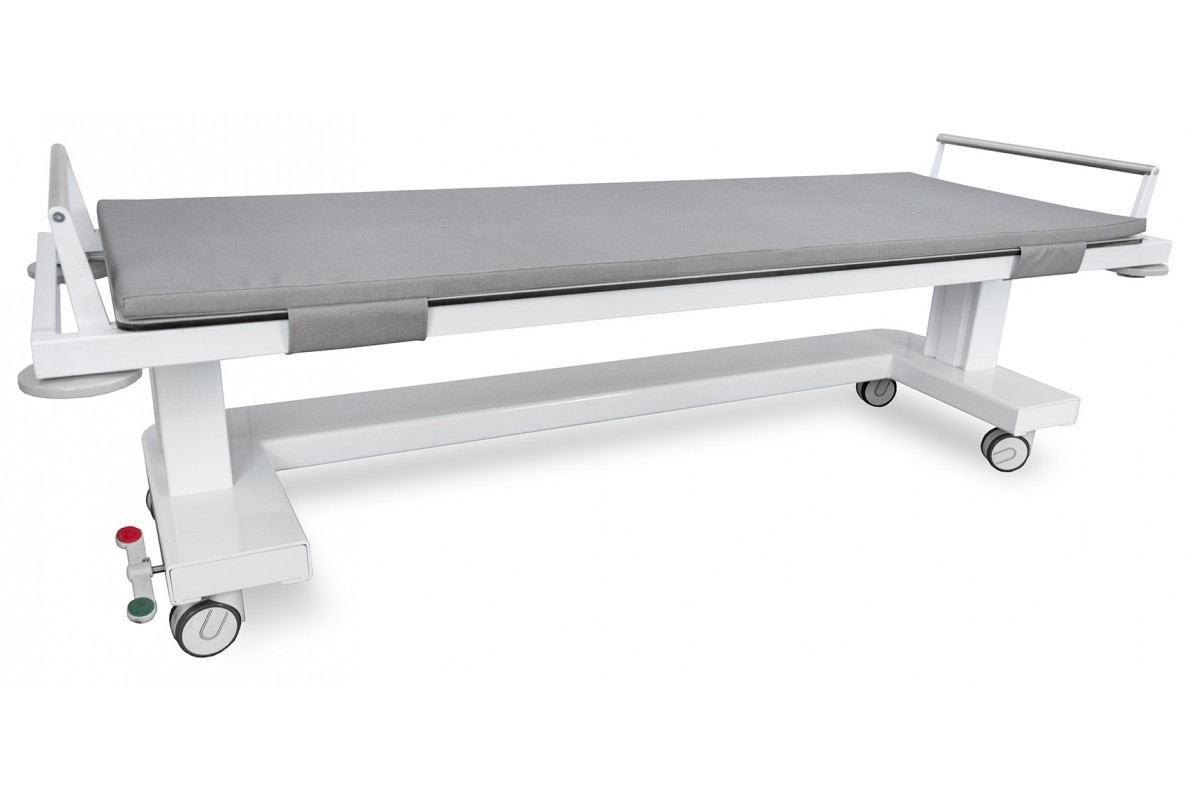

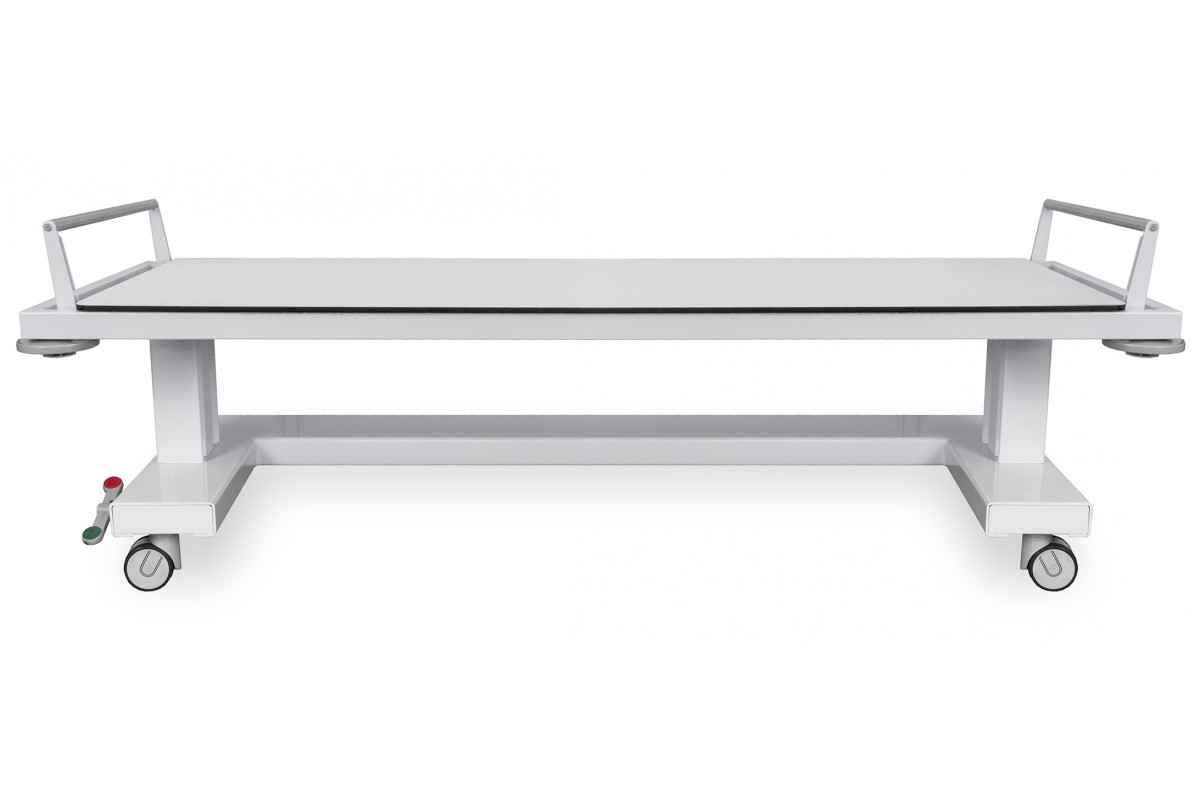

Fixed-Height C-arm X-ray Table JXR-1
Diagnostic Examination Table for X-ray Rooms with Fixed Height
The table's construction also allows it to be used as a trolley for transporting patients.
JXR1 Table Versions
- Available in two width variants: Narrow (N) and Wide (W)
- Available in two height variants: Lower (L) and Higher (H)
Main Features:
- One-piece HPL laminate tabletop
- Central wheel locking on both sides of the base
- Bumpers protecting the table’s structure
- Handles for moving the trolley
- White Guardian AM paint coating with BioCote®, effective against all common bacteria, fungi, and mold
- Vinyl mattress upholstery made with a technology combining the antibacterial PERMABLOCK 3® PLUS+ layer and a PERMACOOL layer
- Maximum load capacity: 275 kg
Important note:
- Possibility to make the table in other dimensions (contact us via email)
Data sheet
- Permissible load
- 275 kg
- Weight
- 140 kg

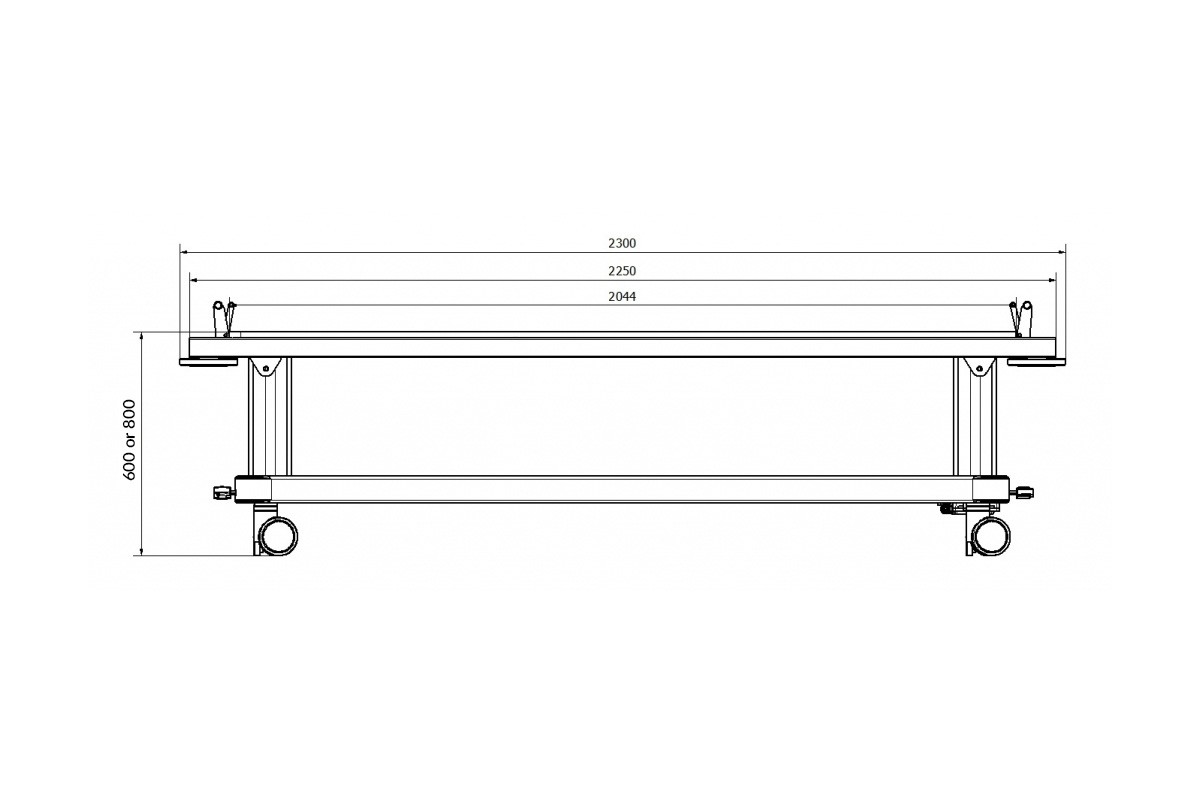

- Total length
- 230 cm
- Mattress length
- 204 cm
- Height (H variant)
- 80 cm
- Height (L variant)
- 60 cm
- Total width (W variant)
- 80 cm
- Total width (N variant)
- 70 cm
- Mattress width (W variant)
- 75 cm
- Mattress width (N variant)
- 65 cm

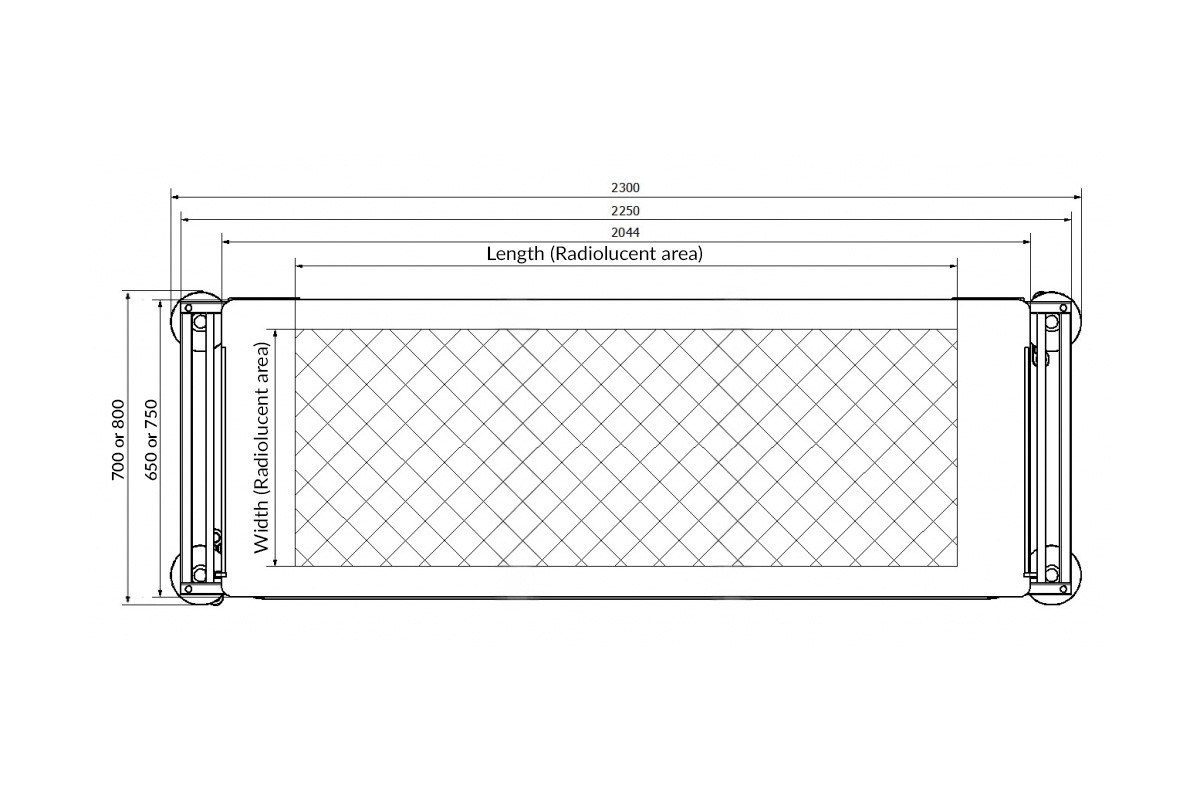

- Radiolucent area (W variant)
- 175 × 68 cm
- Radiolucent area (N variant)
- 175 × 58 cm
